| Industrial Automation Systems |
| |

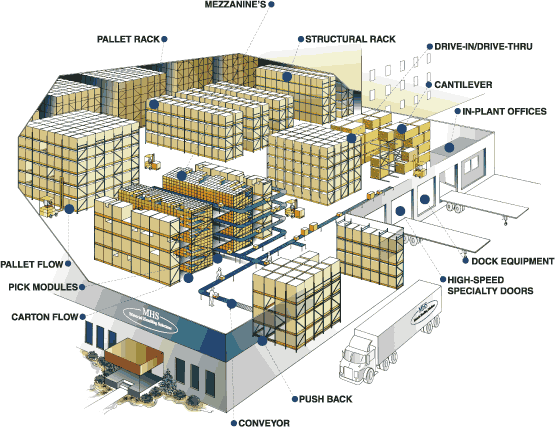

| Material Handling |
|
 |
Vynstek Technology is known for its first-rate quality reputation, reasonable price,
and perfect services. We are specializes in the design and installing of various type
Heavy-Duty racking and Material Handling Solutions which include Pallet Racking, Drive
in Drive Through Racking, Double Deep Racking, Gravity Racking, VNA Pallet Racking.
  |
|
| |

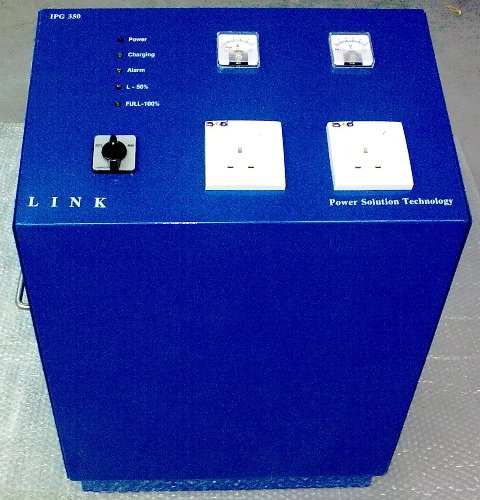

| Intelligent Power Generator |
 |
• Generate Electricity without Petrol
• Can be used at anywhere anytime
• To use for lighting, Laptop, Radio, Video Games, VCD Player, TV,
Mobile Phone, Astro, Fan and Etc…
• Can use Continuously up to 5 Hours without charging the Battery
• Lighting Up to 10 Energy Saving Bulbs
• Noise Free & Environment Friendly
• Mobile / Stand Alone
• Low Consumption in Utility Power
|
|
| |
| PLCs and Servo Controllers |
 |
Whenever the powerful computing functions of a PC are not essential, PLCs are
employed in the systems. Picture shows an OMRON CQM1 PLC controlling among other
things a Mitsubishi Servo Motor System. PLC controlled systems can be linked to
PCs to effect a distributed control system.
|
|
| |
| PCB Design, Layout and Fabrication |
 |
Professional quality PCB design are a standard feature of all our test systems. PCBs are designed using CAD systems, thereby ensuring uniformity and quality in the final layout.
All components are neatly laid out and have their corressponding circuit codes on the silk screen. Solder masks and plated through whole PCB fabrication enhance the realiability of the finished board.
|
|
| |
| Power Switching & Distribution Panel |
 |
Built into the large test system, this panel switches between 120VAC, 60Hz and 240VAC, 50HZ.
Besides selecting the input voltage, the ABB circuit breakers provide each test slot in the system with over-current and short circuit protection.
The use of Allen Bradley contactors for switching 3 phase supplies on and off enhances the reliability of the system and minimizes maintenance.
|
|
| |
| Robotic Arm |
 |
This multi-axis CRS-built robotic arm was installed and programmed to enable the customers to perform reliability testing of refrigerator doors, washing machine lids, rice cooker lids, etc
Various safety standards require that parts that are frequently handed by the end user need to be exercised tens of thousands of times to ensure that they will not become hazardous.
|
|
| |
| Transformer Tester |
 |
Designed for use with an HP4263B LCR meter, this dual test fixture transformer tester is GPIB controlled and can test transformers with up to ten windings for each in 4-wire measurement modes. Tests include inductance, turns ratio, inductance ratio, DC resistance, inter pin shorts & opens.
Other features include programmable test frequencies, test voltages and contact integrity checking. Data logging for SPC purposes is a key feature.
|
|
| |
| Automatic Thermostat Tester IEC 33501 Clause 24.1.2 |
 |
Using infrared rays to heat up thermostats and then cooling them with pressured air,
these testers exercise thermostats that are normally built into rice cookers, thermo
pots, slow cookers, etc. The chart recorder on the top will record the opening and
closing temperatures of the specimens under test.
|
|
|
| |
| Power Control & Sensing Sub Circuit |
 |
Utilizing a current transformer, this printed circuit board senses the presence of an electric current, thereby indicating to the main controller the on/off condition of the thermostat in an electric appliance.
It can also be used with an LED as an indicator in calibrating thermostats in electric irons.
The SSRs (solid state relays) in the foreground control power to the appliance under test under command of the systems controller.
|
|
| |
|
| |
 |
