Instrumentation

HT/OH Line Earthing Equipment suitable for short circuiting
and earthing bare 11 & 33 kV AI Conductors,

Type WI S20-95/IN-TR in conformity
with the international standard
CEI EN 61230 (IEC 1230).

Short Circuit Current : 17,5 kA/1s

Consisting of :

Nº3 Screw type line contact clamps type S20 made by light alloy tested for high
       intensity current. Blocking system moved by steel screw. The central clamp is
       completed by two laterals branches self supporting the two other clamps.
       Bayonet tang type DIN for connection to insulating stick.
       Clamping capacity : conductors 3 ÷ 30 mm Ø.

Nº2 Extraflexible electrolytic copper cable covered by transparent PVC sheath
       connecting between them the three line contact clamps. Section 95 mm²,
       length 2.5 m, complete at the extremities, of tining copper lugs and
       reinforcements by transparent heath-shrink sheath.

Nº1 Earth connection electrolytic copper cable, characteristics as above, section
       50 mm², length 15 m connecting the central line contact clamp with the
       earth clamp.

Nº1 Earth clamp type MT33 made by press forged brass tested for high intensity
       current. Clamping capacity : round conductors and bar up to 33 mm.



Nº1 Screw type ground rod manoeuvring by hexagonal key with two branches;
       made by steel.



Nº1 High insulating stick type PE2/200 D. Tube made by epoxy resin reinforced by
       fiberglass, certified in conformity with the International Standard CEI EN 61235
       (IEC 1235). Realized by two elements each length 1 m, connectable between
       them by quick coupler. Total length 2 m. Complete of : insulating closing cap,
       hand guard, quick coupler, guard and aluminium DIN bayonet attack manoeuvre
       the line contact clamps.

Nº1 Metalic carrying case containing the equipment.

Jupiter a portable light weight power quality analyzer able to measure all common
electrical parameters and capable of analyzing the major phenomena characterizing
power quality such as interruptions, voltage variations(dips and swells), harmonic
and inter harmonic distortion, transients and 3 phase voltage unbalance.

A large colour LCD display allows a clear visualization data-tables, real-time
waveforms of the measured signals, voltage and current transients, vector diagrams
and bargraph display of the harmonic spectrum, while alpha numeric keyboard makes
it easy and user friendly.

With Jupiter it is possible to perform particularly detailed measurement surveys,
saving the data on a COMPACT FLASH memory. The stored data can be successively
analyzed on a Personal Computer using the included PQ studio software.

The full set of accessories included with Jupiter’s supply kit make this a truly
complete system.

Experience the dataTaker DT80. A robust, stand alone, low power data logger featuring
USB memory stick support, 18 bit resolution, extensive communications capabilities and
built-in display.

Another Weller breakthrough gives you two pencils in one. This powerful 80-watt pencil
allows rapid production when working with lead-free solder, high mass components, and
other demanding applications. A special silver heating element for low thermal loss
and fast recover make this unit ideal for continuous production work. And the
interchangeable barrel gives you the option of working with either a traditional
length or shorter tip-to-grip.

• Modern LCD technology gives the user critical information at a glance

• Three freely programmable temperature preset buttons allow quick and easy
  temperature changes

• Powerful 80-watt pencil allows rapid production when working with lead-free solder,
  high-mass components, and other demanding applications

The following functions are built in to the WD1 power unit:

• Setback time: Allows programming of the number of minutes (1 – 99), before
  temperature sets back to idle mode.

• Standby temperature: Allows selection of desired setback temperature, down to 200°F.

• Temperature lockout: Allows supervisor to easily set a temperature that cannot
  be changed by the operator.

• °F/°C switching: Allows the temperature display to read in either °F or °C.

• Temperature offset: Allows the display temperature to be adjusted +/- 72°F when
  working with higher mass tips, where the temperature reading can be affected
  by the mass of the tip.

• Auto-Off Time: Allows programming the number of minutes of inactivity (1 – 99),
  before the station powers off automatically.

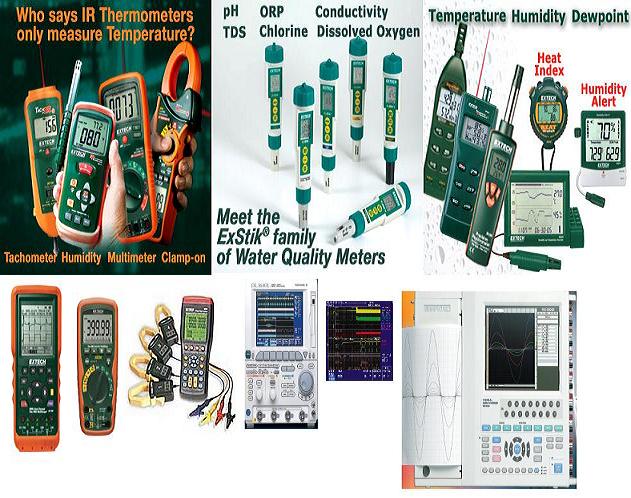

We are the leader in Supply of Lab Equipments such as Workbenches,
Drafters, Temperature Recorders, Digital Oscilloscopes, Function
Generators, Digital Bench Multimeters, Hand Held Multimeters, Current
Clamp Meters, Themometers, Humidity Meters, Dewpoint Meters, Water
Quality Meters, Sound Level Meters or Noise Meters, Anemometers or Air
Velocity Meters, Tachometers or RPM Meters, HV / LV Insulation
Testers, Portable & Panel Meters and etc.

Any requirements, we can provide the solutions to you.
Please refer to our Industrial Automation Systems.
